3123 3125 3126 Factory Price Handheld High Voltage Ohm Meters 5kV Insulation Resistance Tester Price Insulation Resistance （Victor 3125）
4.0 (45 items)
Limited Time SaleUntil the end
03
06
13
US$624.35 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$416.23
Product details
| Management number | 212003796 | Release Date | 2026/04/06 | List Price | US$416.23 | Model Number | 212003796 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- The Basic Feature * 4-range Hight voltage insulation resistance test: * 3123:250V,500V,1000V ,2500V * DC/AC Voltage measurement
- DC:00～±1000V AC:30～600V(50/60Hz) * Liquid crystal display(Max. 9999 counts),36 sect bar graph to display * Sample rate:apptox.0.5 ～ 5 times/sec * Hight voltage insulation resistance test Auto-ranging * PI(Polarization Index),DAR(Induction absorption ratio)can be measured by the automatic measurement function * Continuous measurement function
- * With Timer measurement function * Automatic Electric discharge function * Stepping voltage test,temperature measurement,Leakage current display * The actual output voltage value and the survey insulation resistance value are displayed at the same time * Built-in real-time clock, provide the accurate time to the record and the surveying work * Two kind of convenient of operation data record function:Manual record and Work record,and may convenient inquire about data recording

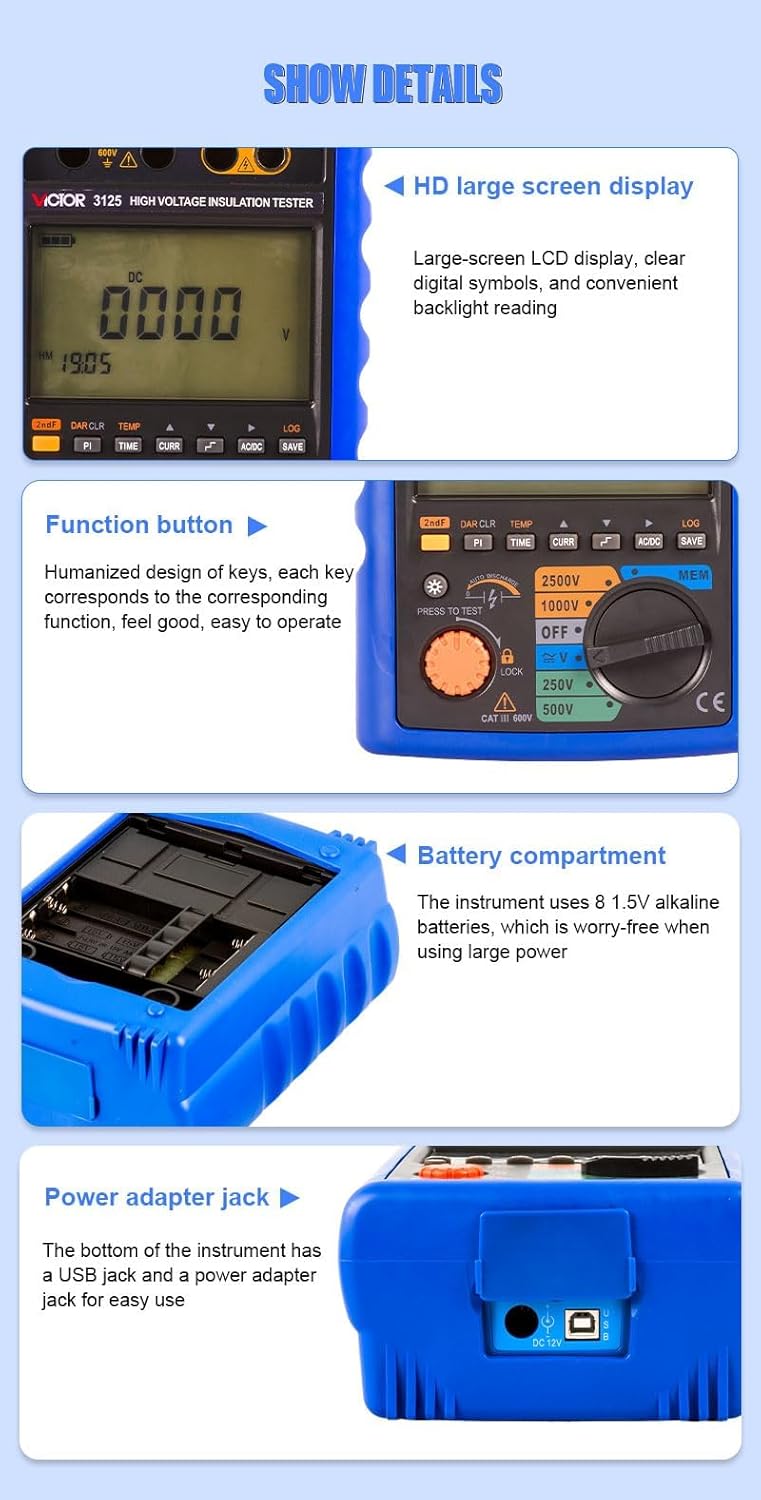

- * Uses the panel calibration technology, without opening the crust can be calibrated * Available alkaline battery,Ni-Hi battery or power adapter power supply,the battery compartment cover may convenient the battery replacement * Has the automatic backlight closure function and the automatic power source closure function * Big screen LCD display,with the white LED backlight * The meter can communicate with computer by isolation interface USB
- * Rated Transient Overvoltage * 6KV(1.2*50us)CATⅠ, CAI Ⅱ, CAT Ⅲ peak measurement * Insulation resistance & Withstand voltage: * 1000MΩ or more /DC1000V (Between electrical circuit and enclosure) * AC8320V(50/60Hz)/5sec. (Between electrical circuit and enclosure) * shake & impact::Randomicity 2g, 5~500Hz * 1 meter drops the test
| Color | Multicolored |
|---|---|
| Model | QD-VICTOR 3125 |
| Brand Name | QDTimes |
| Style Name | Insulation Resistance Tester |
| Unit Count | 1.0 Count |
| Item Weight | 0.6 Kilograms |
| Manufacturer | VICTOR |
| Power Source | Battery Powered |
| Item Dimensions | 9.84 x 3.94 x 7.87 inches |
| Specification Met | CE, RoHS |
| Included Components | VICTOR 3125 |
| Warranty Description | Manufacturer 1 year warranty |
| Upper Temperature Rating | 50 Degrees Celsius |
| EU Spare Part Availability Duration | 3 Years |
