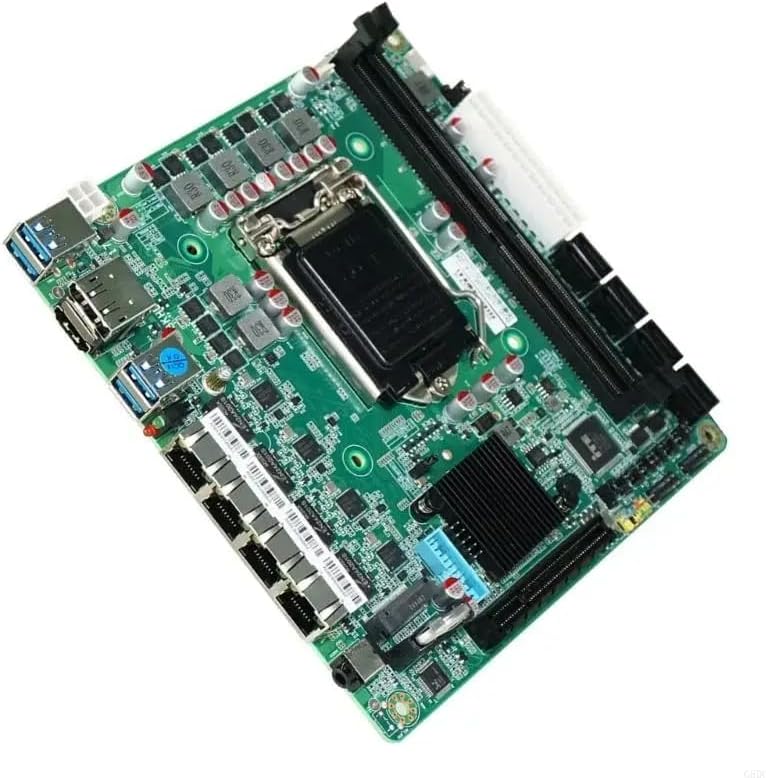

N17 NAS Motherboard High Speed Desktop Computer,DDR4 LGA1151 Support i3/i5/i7,6th-9th Gen Intel Processor, 4 * 2.5G Network Card, M.2 NVME, 8SATA3.0/USB3.0/ Soft Routing Board
4.9 (68 items)
Limited Time SaleUS$83.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212254147 | Release Date | 2026/04/06 | List Price | US$56.00 | Model Number | 212254147 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

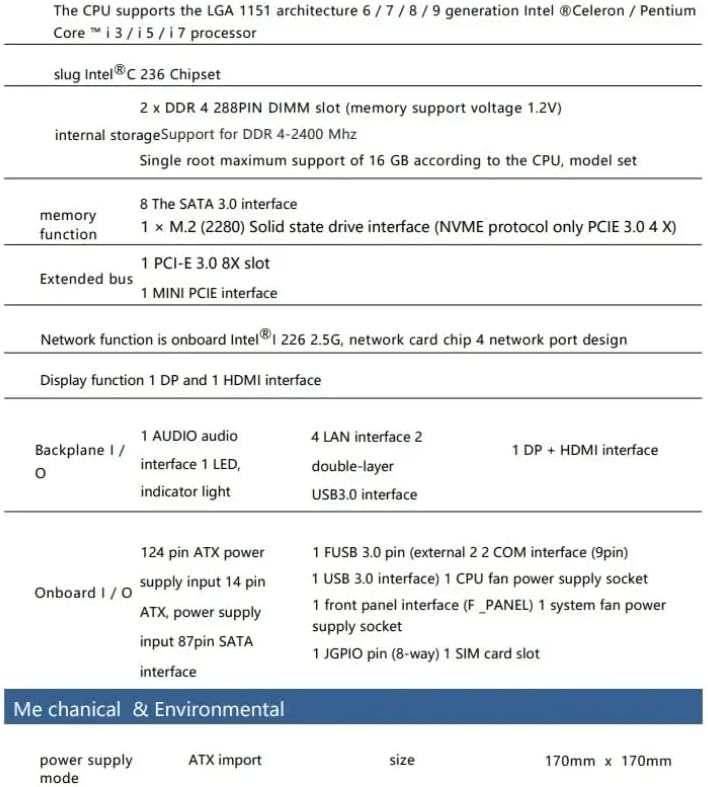

―The CPU supports the LGA 1151 architecture 6 / 7 / 8 / 9 generation Intel Celeron / Pentium Core TM i 3 /i 5 /i7 processor -slug Intel C 236 Chipset -2 × DDR 4 288PIN DIMM slot (memory support voltage 1.2V)， internal storageSupport for DDR 4-2400 Mhz，Single root maximum support of 16 GB according to the CPU. -Memory function:8 The SATA 3.0 interface;1 × M.2 (2280) Solid state drive interface (NVME protocol only PCIE 3.0 4 X) -Extended bus:1 PCI-E 3.0 8X slot;1 MINI PCIE interface. -Network function is onboard Intel i226 2.5G, network card chip 4 network port design. -Display function: 1 DP and 1 HDMI interface Backplane I/O:1×AUDIO audio interface;1×LED indicator;4×LAN interface;2×Dual-layer USB3.0 interface;1×DP+HDMI interface. Onboard I/O:1×24 pin ATX power input;1×4 pin ATX power input;8×7pin SATA interface;1×FUSB3.0 pin (can connect 2 external USB3.0 interfaces) ;1×Front panel interface (F_PANEL);1×JGPIO pin (8-way);2×COM interface (9pin);1×CPU fan power socket;1×System fan power socket;1×SIM card slot. Power supply: ATX input Dimensions: 170mm x 170mm Working temperature: -20~55℃ Ambient humidity: 5~90%RH relative humidity, no condensation
- The C 236 Chipset supports the LGA 1151 architecture 6 / 7 / 8 / 9 generation Intel Celeron / Pentium Core TM i 3 /i 5 /i7 processor.
- 【Industrial NAS Motherboard 】Mini-ITX size: 17.0 cm x 17.0 cm,High-density moisture-proof fiber circuit board Ultrafast Connectivity--4* USB3.0,1×FUSB3.0 pin (can connect 2 external USB3.0 interfaces) ;1×JGPIO pin (8-way). 1* HDMI and 1* DP support dual 4K@60Hz display.
- 【High speed network card】 Features Intel 4* i226 2.5G RJ45 ports, ensuring stable and fast network connections, ideal for NAS storage, multimedia and network security appliances, etc. enhancing system reliability for professional use in both office and home settings
- 【 Storage and Memory】2*DDR4 DIMM, 2666/2400/2133MHz, single slot supports up to 16G, 8* SATA3.0 with 6Gbps ,1 × M.2 (2280) Solid state drive interface (NVME protocol only PCIE 3.0 4 X).Expansion Bus:1×PCI-E 3.0 8X slot;1×MINI PCIE interface
- NOTE: The motherboard requires both 24PIN + 4PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient.
| Brand | UDPTCP |
|---|---|
| Platform | Windows |
| Chipset Type | Intel C236 |
| Manufacturer | UDPTCP |
| Model Number | C236-NAS-ITX |
| Number of Ports | 19 |
| Total Usb Ports | 4 |
| Processor Socket | LGA 1151 |
| Total SATA Ports | 8 |
| Compatible Devices | Mouse |
| Memory Clock Speed | 2666 MHz |
| Warranty Description | One year warranty |
| Compatible Processors | Intel 6-9TH/i3/i5/i7 |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 2 |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 32 GB |
| Ram Memory Maximum Size | 32 GB |
| Number of Ethernet Ports | 4 |
| Main Power Connector Type | 24-Pin+4Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | SATA 3 |
