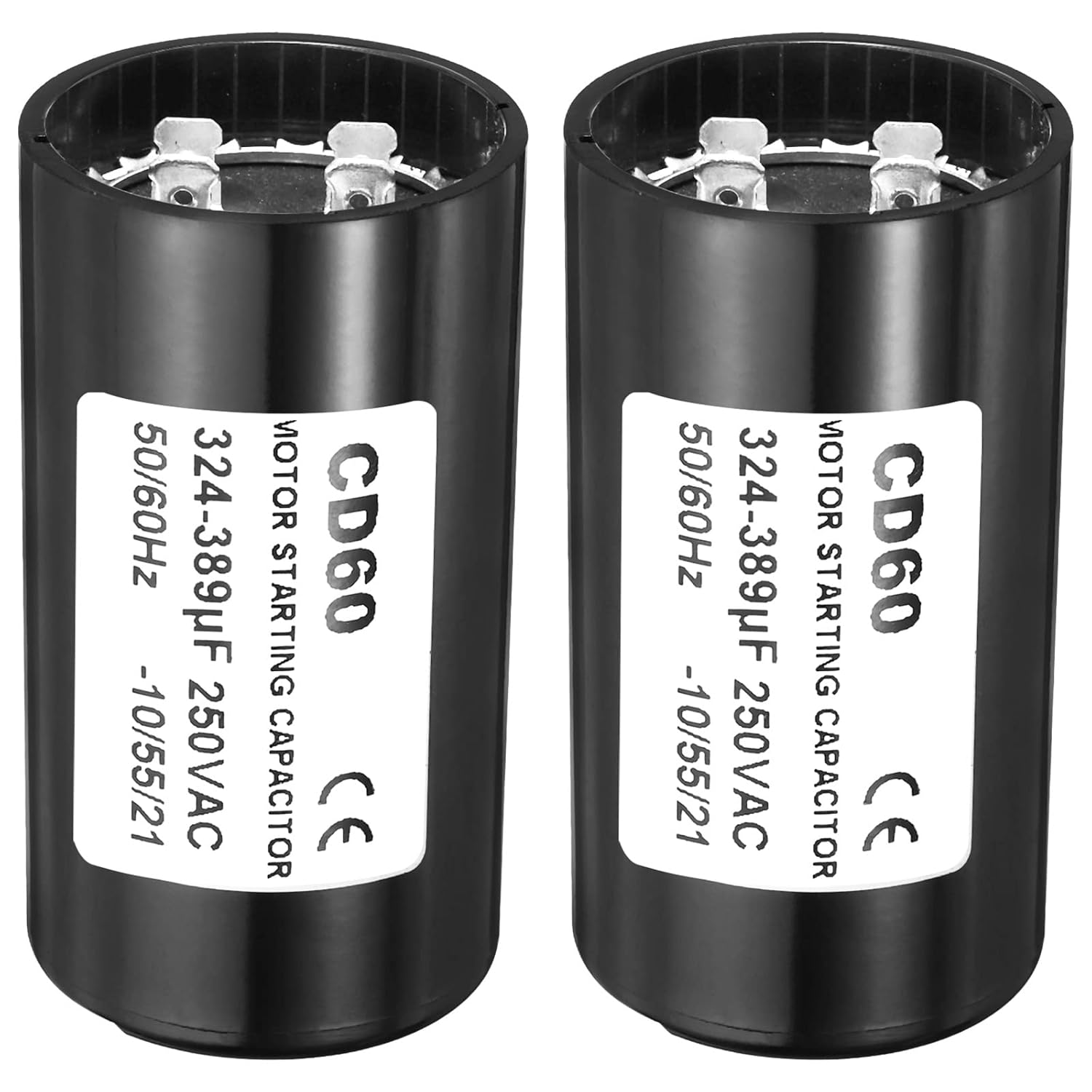

PATIKIL Motor Start Capacitor, 2 Pack 324-389uF/Mfd 250VAC 50/60Hz CD60 Run Capacitor Motor Starting Capacitor for Electric Motor Starts Running

The CD60 running capacitor is suitable for the start-up of AC motors with frequency of 50Hz and 60Hz, such as air compressors, pressure washers, air conditioners, washing machines, motors, generators, HVAC, fans, compressors, refrigerators, etc.Specification:Model: CD60Shell Color: BlackMaterial: Metallized Polypropylene FilmLead End: 2+2 insertRated Capacity: 324-389uF/MfdRated Voltage: 250VOperating Temperature: -10/55/21 ℃Body Size: 46 x 85 mm / 1.8 x 3.3 inch (D*H)Packing List: 2 x Motor Start Capacitor Advantage:Our CD60 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, long service life, excellent electrical performance, reliable insulation performance, and current with good impact resistance.Instruction:Capacitance is not divided into positive and negative stages and can be connected at will. High stability, good heat dissipation effect under high temperature.NOTE: Please pay attention not to over current or over voltage when using.

• Model: CD60; Lead End: 2+2 insert; Rated Capacity: 324-389uF/Mfd; Rated Voltage: 250V; Operating Temperature: -10/55/21 ℃; Body Size: 46 x 85 mm / 1.8 x 3.3 inch (D*H)
• Advantage: Our CD60 run capacitor has characteristics of small volume, lightweight, low loss, strong overload ability, long service life, excellent electrical performance, reliable insulation performance, and current with good impact resistance.
• Instruction: Capacitance is not divided into positive and negative stages and can be connected at will. High stability, good heat dissipation effect under high temperature.
• Application: The CD60 running capacitor is suitable for the start-up of AC motors with frequency of 50Hz and 60Hz, such as air compressors, pressure washers, air conditioners, washing machines, motors, generators, HVAC, fans, compressors, refrigerators, etc.
• Note: Please pay attention not to over current or over voltage when using.
