Road Bike Frameset, Carbon Gravel Bike Frameset, Carbon Fiber Bike Frame Disc Brake, Road Bike Frame, Lightweight Disc Brake Frame, Internal Routing(White,46cm)

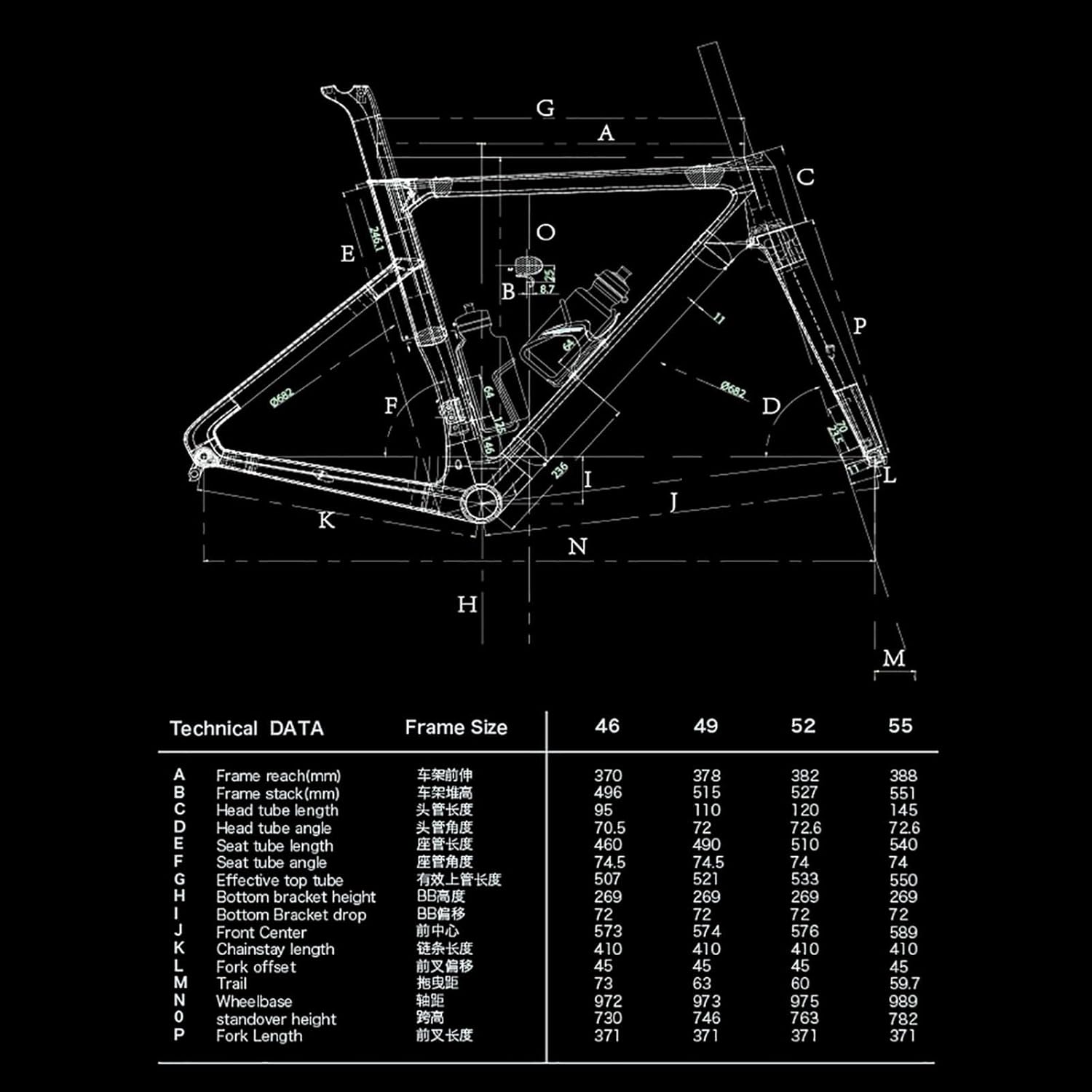

Carbon Road Bike Framest – Lightweight, Stiff & High-PerformanceAerodynamic Design – Optimized tube shapes cut through wind for maximum efficiencyFrame name: Carbon fiber disc brake road frameHeight and frame size table: 46: 155CM-165CM; 49: 165CM-173CM; 52: 173CM-180CMFrame technical parameters and configurationFrame: Carbon fiber disc brake frame, 12mm thru-axleFront fork: Carbon fiber disc brake 28.6 cone tube, 12mm thru-axleSeat tube length: 330mmWrist group: outer diameter 52MMx inner diameter 40MMBottom bracket: T47 86mm threadDisc brake seat: Flat mount, front 70mm, rear 34mmSeatpost: Teardrop shape, rear drift 15mmFront fork opening: 12x100mmRear fork opening: 12x148mmFront fork thru-axle rod: M12x1.5mm L121mmRear fork thru-axle rod: M12x1.5mm L168mmCompatible with: mechanical shifting, electronic shifting, up to 32C tiresAccessories: seat tube clamp, front derailleur hanger, rear derailleur tail hook, barrel axleNotice:1. Please allow slight dimensional tolerances due to manual measurements, lighting in photography may cause color differences from real life.2. Please double check the size details in our list according to your actual situation to make sure you buy the right Bikes frame.

• Premium Carbon Fiber Construction: Crafted from grade carbon fiber, this Road Bike Frames delivers an unbeatable combination of lightweight and professional-grade stiffness. The carbon fiber bike frame material provides superior vibration damping for smoother rides and better power transfer
• Fully Integrated Internal Cable Routing: This carbon bike frame features a complete internal cable routing with precision-engineered channels that eliminate wind resistance. The streamlined design accommodates both electronic and mechanical groupsets while protecting components from the elements
• Seamless One-Piece Monocoque Design: Utilizing advanced mountain bike frames manufacturing technology, this bicycle frame is molded as a single unit for maximum strength and minimum weight. The unified structure eliminates weak points while maintaining the responsive ride quality of carbon fiber
• High-Performance Disc Brake System: Designed for modern braking power, this Road Bike Frames features flat-mount disc brake compatibility with structural reinforcements for exceptional stopping performance in all weather conditions
• Unmatched Versatility: Perfect for road racing, gran fondos, or spirited training rides, this carbon fiber bike frame excels across all cycling disciplines. The balanced geometry makes it ideal as both a competition-ready bicycle frame and high-performance endurance machine
