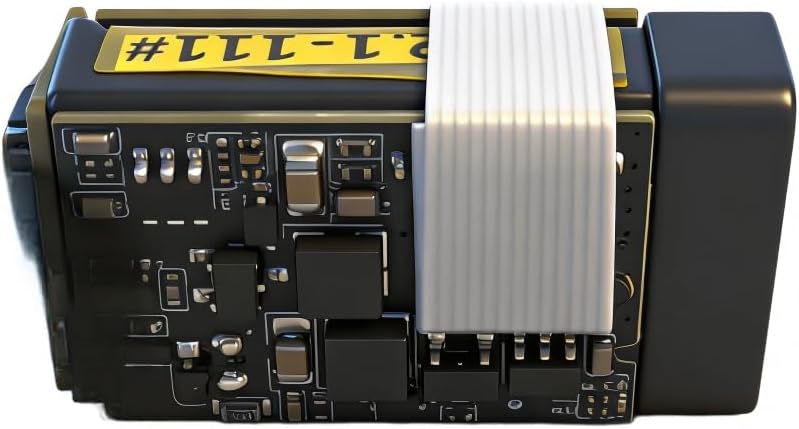

SPD1200Z2 Laser Ranging Module,Single-Photon Laser Distance Measuring Module, SPAD LiDAR Ranging Sensor Module

The SPD1200Z2 is a high-precision, compact laser ranging module operating at a center wavelength of 905 nm. It delivers reliable measurements across a range of 0.2 m to 1,200 m under moderate sunlight and high-visibility conditions, with nighttime range extending up to 1,500 m. Featuring a ranging accuracy of ±0.3 m for distances up to 100 m and a measurement accuracy rate of ≥98%, this module is built for demanding applications. The adaptive measurement frequency of 2–20 Hz ensures fast, responsive readings, while the UART-TTL communication interface simplifies integration and secondary development. Weighing approximately 6 g and measuring just 28.2×14.8×10.2 mm, it is ideal for embedding into handheld devices such as night vision equipment, thermal imagers, telescopes, and laser illuminators. It also supports broader applications including border security monitoring, aviation, railway systems, law enforcement, and outdoor sports. With an IP67 protection rating inside the lens cavity, an operating temperature range of -20°C to +60°C, and a shock resistance of 1,000 g/ms, this module is engineered for durability and long-term reliability (MTBF ≥ 1,500 h).

• HIGH-PRECISION MEASUREMENT RANGE: Measures distances from 0.2 m to 1200 m under moderate sunlight, with nighttime range extending up to 1500 m.
• FAST & ADAPTIVE REFRESH RATE: Features a 2 Hz to 20 Hz adaptive measurement frequency with a measurement accuracy rate of 98% and a false alarm rate of 1% or less.
• UART-TTL INTERFACE: Equipped with a customizable UART-TTL communication interface and includes dedicated test software and protocol documentation for easy secondary development.
• COMPACT & LIGHTWEIGHT DESIGN: Measures just 28.2 x 14.8 x 10.2 mm and weighs approximately 6 g, making it ideal for integration into handheld devices like telescopes and thermal imagers.
• DURABLE & RELIABLE: Rated IP67 (inside lens cavity), operates from -4°F to 140°F, withstands 1000 g/ms shock resistance, and has an MTBF of 1500 hours or more.
